Akkurat Audio – Line Source Series

At Akkurat Audio, our Design and Performance Philosophy is central to everything we do, ensuring customers consistently experience performance that exceeds expectations.
The Line Source Series offers the absolute maximum clarity and SPL as well as a broad frequency response for the absolute best music and surround sound experiences.
Introducing Akkurat Audio Line Source Series
We developed the Line Source Series by focusing on the breathtaking cinematic experiences that movie and entertainment lovers seek, while also capturing the intimate yet powerful orchestral experience that music enthusiasts crave.
- Introducing our Line Source Series
- Offerings
- Tech Specs
- Pictures
Named after the distance from Earth:
Akkurat Audio model naming follows a space travel logic. The closer to Earth, the smaller the speaker and the lower its maximum SPL required to reach reference level. Conversely, the further from Earth, the larger the speaker and the higher the SPL needed.
Our product line offers a flexible mix-and-match approach, defined by the listening distance, whether using Passive or Active designs, Point Source or Line Source speakers.
The Line Source Series consist of the medium sized Vega Speaker, delivering reference level up to 8m. And the series extends to the stackable Singularity Line Source speaker, reaching reference level up to 11 m without horizontal beaming, and nearly 20 m when beaming is introduced, when fully stacked.
Our subwoofers are likewise designed for stacking, ensuring they meet the extreme performance requirements set by our speakers. Keep in mind that the reference level for subwoofers is 10 dB higher than for speakers (115 dB), placing significant demands on subwoofer performance.
An Akkurat Audio System is named by the combination of its main speakers (LCR), main subwoofers, and the total number of units in the setup. For example, a pair of Vega speakers with a pair of Citadel Subwoofers is named a Vega Citadel 2.2 system.
Outstanding Clarity and Performance:
The Line Source Series offers the absolute maximum clarity and SPL as well as a broad frequency response for the absolute best music and surround sound experiences.
The Line Source Series are using multiple top of the line Transducers and Tweeters in a line array. This ensures minimum reflection in the floor and ceiling while delivering the best audio experience Akkurat Audio has to offer. It also delivers over greater distances compared to the Point Source Series.
If you want the absolute best you look at the Line Source Speaker Series.
Consistent Tonality Across Series:
By choosing only top of the line and cohesive components from our partners. We ensure that the our point source series have a matching and unified tonal profile. So it seamlessly pairs with all Akkurat Audio speaker series. Which furthermore ensures scalability, allowing for easy upgrades or reallocation of speakers within the system.
Thereby supporting your long-term journey as a customer. You can evolve from an orchestral setup to a full cinematic setup by combining speakers across all speakers whether its point source or line source and repurposing existing speakers.
Ensuring High Performance and Headroom Across Series:
We developed the Line Source Series to deliver the highest sound quality and SPL achievable without waveguides. To provide flexibility, we offer two variants:
- Vega, a best-in-class 150 cm sleek Line Source speaker, combining exceptional performance and value.
- Singularity-3, a stackable Line Source module for larger LCR stacks or smaller Wide and Surround channels. Without requiring the flagship model for every position.
This is what we call Akkurat What You Need: maximum flexibility and the best performance-per-buck approach.
Models are based on the distance to the Main Listening Position (MLP). The ‘Reference’ tag denotes speakers engineered for reference-level performance (85 dB + 20 dB headroom, 115 dB LFE, 20 Hz–20 kHz ±2–3 dB) at distances above 8 meters.
To match the efficiency of Line Source speakers, multiple subwoofers are needed. Larger setups, such as a Singularity-9 Citadel 2.4, require significant processing power, additional amplification channels, and more than four subwoofers for cinematic-level performance.
Easy Integration into Wall Installations:
The Line Source Speakers have a shallow cabinet depth (from 16,6 cm up to 20 cm excl. speaker terminals).
Which ensures an easy integration into wall-mounted setups (incl. toe-in preparation by request) without taking up huge amounts of depth in your living spaces. Furthermore we only offer sealed speaker cabinets for optimal room installation and frequency response.
Colours and Visual materiels:
All speakers from Akkurat Audio resemble the ugly duckling. We design our speakers to have an anonymous look by using toned down colours and visual materials. As our speakers are meant to be experienced, not seen.
To achieve this, we apply a coat of one layer primer followed by two layers of matte black both using water-based paint. This process not only ensures slight waterproofing but also creates a discreet surface color, making the speaker virtually invisible behind acoustic fabric. Furthermore, this approach helps lower the price for the customer.
The most detailed highs on the market
Our Akkurat Audio Speaker are equiped with the high performing and highly detailed AMTs from based on Mundorfs top of the line Concert Series. Ranging from the mid of the concert series with a sensitivity of 90db and all the way up to the absolute top with the incredible 100db sensitivity tweeter measured at 2,83v.
We argue that it’s very difficult to find a better performing tweeter in this price range.
We prioritize sustainability by producing our products locally and only manufacturing them when ordered:
All Akkurat Audio speakers are locally assempled, at our location in Denmark using local production partners. Our manufactoring process uses minimal shipping of components from outside Northern Europe, focused on reducing the use of non-sustainable materials.
A Sound Experience offers a few demonstration setups for audition. While all other speakers are produced only when ordered (built to order).
Curious about how we strive for sustainability? Learn more here at our sustainability page.
Competitive Pricing:
Although our speakers deliver reference level performance or above, we offer our speakers at 10-30% lower prices than competing brands, all while maintaining superior audio performance.*
Further Information:
*Our Design and Performance Philosophy keeps pricing competitive. We avoid exotic materials, costly production, heavy marketing, investors, and dealer markups, supported by our highly passionate team.
Akkurat Audio Line Source Speakers:
The Line Source consists exclusively of Outboard Active Crossover Speaker models. They have been designed either to deliver exceptional value for a Line Source system or to fully leverage the highest-sensitivity tweeters and unlock performance to a different level.
All Line Source models are fully compatible with Akkurat Audio Point Source speakers as well as with other Line Source models, delivering the same trusted tonality and performance across any setup.
The Line Source Series is ideal for You:
- If you require the utmost highest SPL and thereby unlocking the uptimum performance and sound profile delivered by Akkurat Audio
- If you have a large to XXX-Large environments with multiple rows and a sizable audience
- If you want to ensure a consistent experience across every row
- If you require the highest crossover filter flexibility by enabling customized high/low pass filters, delay, gains and PEQs.
- If you want to avoid “unnessary” chains in the signal
- If your favorate Audio Processor (E.g. Trinnov, Storm or similar) have a surplus of processing channels, supporting actively crossed speakers
- If you don’t mind the higher cost on the processing and amplifier side to achieve the above mentioned requirements.
The Line Source Speaker models featured in the ‘Tech Spec’ tab are:
- The Vega Speaker is a standalone Line Source speaker, named after the brightest star in the Lyra constellation. It delivers exceptional value while offering the signature Akkurat Audio tonality and performance, making it a standout choice for both demanding and compact sound environments.
- The Singularity Speaker, named after the concept of a singularity, a point of immense energy and focus, is a modular Line Source speaker. A single module is called Singularity-3, two modules form the Singularity-6, and it can be expanded up to six modules, known as the Singularity-18. For maximum performance, this is the model you need!
Model designation: The lineup is inspired by the space travel:
Models closer to our solar system appear on the left, while those conceptually further away are on the right.
| Model: | Vega | Singularity-3 | Singularity-6 | Singularity-9 | Singularity-12 |
|---|---|---|---|---|---|
| Speaker Type: | Line Source Midrange-Array-Tweeter-Array Non-Stackable | Line Source Midrange-Array-Tweeter-Array Extension module up to 6 stacked Minimum 2 required | Line Source Midrange-Array-Tweeter-Array 2 modules of Singularity 3 (Upgradable) | Line Source Midrange-Array-Tweeter-Array 3 modules of Singularity 3 (Upgradable) | Line Source Midrange-Array-Tweeter-Array 4 modules of Singularity 3 (Upgradable) |
| Amplification Channels Required: | 2 Channels with Outboard Active Crossover & DSP Capability Required | 2 Channels with Outboard Active Crossover & DSP Capability Required | 2 Channels with Outboard Active Crossover & DSP Capability Required | 2 Channels with Outboard Active Crossover & DSP Capability Required | 2 Channels or 4 Channels with Outboard Active Crossover & DSP capability Required |
| Woofer Size: | 8 * 5.25″ | 3 * 6.5″ | 6 * 6.5″ | 9 * 6.5″ | 12 * 6.5″ |
| Woofer Type: | Long Stroke driver with Ultra Low Distortion with PP Coated Fiber Paper Mix from Purifi-Audio | Long Stroke driver with Ultra Low Distortion with PP Coated Fiber Paper Mix from Purifi-Audio | Long Stroke driver with Ultra Low Distortion with PP Coated Fiber Paper Mix from Purifi-Audio | Long Stroke driver with Ultra Low Distortion with PP Coated Fiber Paper Mix from Purifi-Audio | Long Stroke driver with Ultra Low Distortion with PP Coated Fiber Paper Mix from Purifi-Audio |
| Tweeter Type: | 8 pcs based on High Quality/Performance Mundorf AMT | 3 pcs based on Mundorf’s Best Performing AMT | 6 pcs based on Mundorf’s Best Performing AMT | 9 pcs based on Mundorf’s Best Performing AMT | 12 pcs based on Mundorf’s Best Performing AMT |
| Cabinet Type: | Sealed enclosure made of 30mm MDF with Mundorf damping material | Sealed enclosure made of 30mm MDF with Mundorf damping material | Sealed enclosure made of 30mm MDF with Mundorf damping material | Sealed enclosure made of 30mm MDF with Mundorf damping material | Sealed enclosure made of 30mm MDF with Mundorf damping material |
| Cabinet Size (H*W*D): -Metric -Imperial | 1500mm*300mm*166mm 59.06″×11.81″×6.54″ (excl. speaker terminals) | 650mm*350mm*200mm 25.59*9.84*7.874″ (excl. speaker terminals) | 1300mm*350mm*200mm 51.18*9.84*7.874″ (excl. speaker terminals) | 1950mm*350mm*200mm 76.77*9.84*7.874″ (excl. speaker terminals) | 2600mm*350mm*200mm 102.36*9.84*7.874″ (excl. speaker terminals) |
| Cabinet Volume incl. drivers: | ~28L | ~19,5L | 2 * ~19,5L | 3 * ~19,5L | 4 * ~19,5L |
| Weight: | ~39,9KG / 87,98 lbs | ~24,75KG / 54,59 lbs | ~49,5 KG / 109,18 lbs | ~74,25 KG / 163,77 lbs | ~99 KG / 218,36 lbs |
| Finish: | Black matte finish (Water based) | Black matte finish (Water based) | Black matte finish (Water based) | Black matte finish (Water based) | Black matte finish (Water based) |
| Internal Wiring: | Mundorf MConnect CUW Copper 1,0mm Wires for Tweeter & 1,5 mm Wires for Woofers using high quality solder | Mundorf MConnect CUW Copper 1,0mm Wires for Tweeter & 1,5 mm Wires for Woofers using high quality solder | Mundorf MConnect CUW Copper 1,0mm Wires for Tweeter & 1,5 mm Wires for Woofers using high quality solder | Mundorf MConnect CUW Copper 1,0mm Wires for Tweeter & 1,5 mm Wires for Woofers using high quality solder | Mundorf MConnect CUW Copper 1,0mm Wires for Tweeter & 1,5 mm Wires for Woofers using high quality solder |
| Speaker Terminals: – Wire Support – Depth | Mundorf Pure Cobber Terminal Post EVO – Supports up to 12 AWG / 3,3 mm² – 35mm / 1,38 inches | Mundorf Pure Cobber Terminal Post EVO – Supports up to 12 AWG / 3,3 mm² – 35mm / 1,38 inches | Mundorf Pure Cobber Terminal Post EVO – Supports up to 12 AWG / 3,3 mm² – 35mm / 1,38 inches | Mundorf Pure Cobber Terminal Post EVO – Supports up to 12 AWG / 3,3 mm² – 35mm / 1,38 inches | Mundorf Pure Cobber Terminal Post EVO – Supports up to 12 AWG / 3,3 mm² – 35mm / 1,38 inches |
| Minimum quality speaker cable: | Mundorf Angelique® Copper stranded 1,5mm or similar | Mundorf Angelique® Copper stranded 1,5mm or similar | Mundorf Angelique® Copper stranded 1,5mm or similar | Mundorf Angelique® Copper stranded 1,5mm or similar | Mundorf Angelique® Copper stranded 1,5mm or similar |
| Recommended quality speaker cable: | Mundorf MConnect CUW Copper Wires 1,5 mm or similar | Mundorf MConnect CUW Copper Wires 1,5 mm or similar | Mundorf MConnect CUW Copper Wires 1,5 mm or similar | Mundorf MConnect CUW Copper Wires 1,5 mm or similar | Mundorf MConnect CUW Copper Wires 1,5 mm or similar |
| Impedance: – Bass Section – Tweeter Section | 4Ω nominal / 3.2Ω min 8Ω nominal / 6.4Ω min | 24Ω nominal / 19.2Ω min 24Ω nominal / 19.2Ω min | 12Ω nominal / 9.6 Ω min 12Ω nominal / 9.6 Ω min | 8Ω nominal / 6.4 Ω min 8Ω nominal / 6.4 Ω min | 6Ω nominal / 4.8Ω min 6Ω nominal / 4.8Ω min |
| Sensitivity 2.83v / 1m: | Bass section: 95,5 dB Tweeter section: 96 dB | Bass Section: 87 dB Tweeter section: 98,5 dB | Bass Section: 92,5 dB Tweeter section: 105,5 dB | Bass Section: 95,5 dB Tweeter section: 108 dB | Bass Section: 98 dB Tweeter section: 110,5 dB |
| High/Low Pass filters between Bass/Tweeter Sections | Linkwitz-Riley 4th order @1600Hz | Linkwitz-Riley 4th order @1600Hz | Linkwitz-Riley 4th order @1600Hz | Linkwitz-Riley 4th order @1600Hz | Linkwitz-Riley 4th order @1600Hz |
| Recommended High Pass filters to Subwoofers: | 80Hz Linkwitz-Riley 4th order | 80Hz Linkwitz-Riley 4th order | 80Hz Linkwitz-Riley 4th order | 80Hz Linkwitz-Riley 4th order | 80Hz Linkwitz-Riley 4th order |
| Supported Frequency Range: | 80Hz – 24000Hz | 80Hz – 24000Hz | 80Hz – 24000Hz | 80Hz – 24000Hz | 80Hz – 24000Hz |
| Dispersion Horisontal -6dB: | 45° | 60° | 60° | 60° | 60° |
| Threshold: | ±2-3dB ±1-2dB with custom pr project PEQs | ±2-3dB ±1-2dB with custom pr project PEQs | ±2-3dB ±1-2dB with custom pr project PEQs | ±2-3dB ±1-2dB with custom pr project PEQs | ±2-3dB ±1-2dB with custom pr project PEQs |
| Power Handling (8Ω) Bass/Tweeter: – Minimum – Continous – Peak | 150w / 50w 275w / 130w 750w / 450w | N/A | 200w / 200w 625w / 625w 1775w / 1250w | 200w / 200w 625w / 625w 1775w / 1250w | 200w / 200w 625w / 625w 1775w / 1250w |
| Maximum Free Standing Peak SPL at 1m: – Continous / Peak SPL | 118db / 122 dB 99,5dB / 108dB* *Max SPL before the introduction of Horisontal beaming | N/A | 120 dB / 124,5 dB 117dB / 121 dB* *Max SPL before the introduction of Horisontal beaming | 123,5 dB / 128 dB 117dB / 121 dB* *Max SPL before the introduction of Horisontal beaming | 126 dB / 130,5 dB 117dB / 121 dB* *Max SPL before the introduction of Horisontal beaming |
| Can achieve Reference Level (105 dB Peak) up to: | 12m *1,5m for the intruction of Horisontal beaming | N/A | 14m *11,5m for the intruction of Horisontal beaming | 16m *11,5m for the intruction of Horisontal beaming | 18m *11,5m for the intruction of Horisontal beaming |
| Horisontal Beaming frequency | ~17.150 Hz | ~11.065 Hz | ~11.065 Hz | ~11.065 Hz | ~11.065 Hz |
| System Required Minimum of Subwoofers: | 4 Station Subwoofers or 2 Citadel Subwoofers | N/A | 4 Station Subwoofers or 2 Citadel Subwoofers | 8 Station Subwoofers or 4 Citadel Subwoofers | 8 Station Subwoofers or 4 Citadel Subwoofers |
| Recommended Accurate Audio Subwoofers for a Reference 7.x.x Dolby Atmos / DTS:X system: – Distance from listening position (Reference Level) | 2-4m: 6 Station Subwoofers or 2-4 Citadel Subwoofers 4-6m: 6-8 Station Subwoofers or 4 Citadel Subwoofers 6-8m: 8-12 Station Subwoofers or 4-6 Citadel Subwoofers For more power choose the Singularity-6 or above | N/A | 3-5m: 8 Station Subwoofers or 4 Citadel Subwoofers 5-7m: 8-12 Station Subwoofers or 4-6 Citadel Subwoofers 7-10m: 12-16 Station Subwoofers or 6-8 Citadel Subwoofers | 3-5m: 8 Station Subwoofers or 4 Citadel Subwoofers 5-7m: 8-12 Station Subwoofers or 4-6 Citadel Subwoofers 7-10m: 12-16 Station Subwoofers or 6-8 Citadel Subwoofers 10-15m: 16-20 Station Subwoofers or 8-10 Citadel Subwoofers | 3-5m: 8 Station Subwoofers or 4-6 Citadel Subwoofers 5-7m: 12 Station Subwoofers or 6 Citadel Subwoofers 7-10m: 16 Station Subwoofers or 8 Citadel Subwoofers 10-15m: 20 Station Subwoofers or 10 Citadel Subwoofers For more power choose Singularity-15/18. |
| Installation placement: – Optimum – Should be avoided | In Bafflewall In a Corner Near Wall Away from wall | N/A | In Bafflewall In a Corner Near Wall Away from wall | In Bafflewall In a Corner Near Wall Away from wall | In Bafflewall In a Corner Near Wall Away from wall |
| Used in: | Medium-to-X-Large sized reference systems | Upgrading existing Singularity speakers | Medium-to-X-Large sized reference systems | Large-to-XX-Large sized reference systems | Large-to-XXX-Large sized reference systems |
| Designed for: – Primary – Secondary | Cinematic Solutions / Surround Systems Orchestral Solutions / Stereo Systems | Cinematic Solutions / Surround Systems Orchestral Solutions / Stereo Systems | Cinematic Solutions / Surround Systems Orchestral Solutions / Stereo Systems | Cinematic Solutions / Surround Systems Orchestral Solutions / Stereo Systems | Cinematic Solutions / Surround Systems Orchestral Solutions / Stereo Systems |
| Supported Decoupling Feet – incl | IsoAcoustics: GAIA II Neo (M8) (Set of 4) | N/A | IsoAcoustics: GAIA II Neo (M8) (Set of 4) | IsoAcoustics: GAIA I Neo (M8) (Set of 4) | IsoAcoustics: GAIA I Neo (M8) (Set of 4) |
| Warranty: | 10 Years | 10 Years | 10 Years | 10 Years | 10 Years |
| Retail Price (DKK/EUR incl. VAT) Price Per Unit, minimum 2: | 77.995 DKK / EUR 10.750 | 58.995 DKK / EUR 8.150 | 117.990 DKK / EUR 16.250 | Contact us | Contact us |
When the upportunity comes we will add pictures of our Line Source Series.

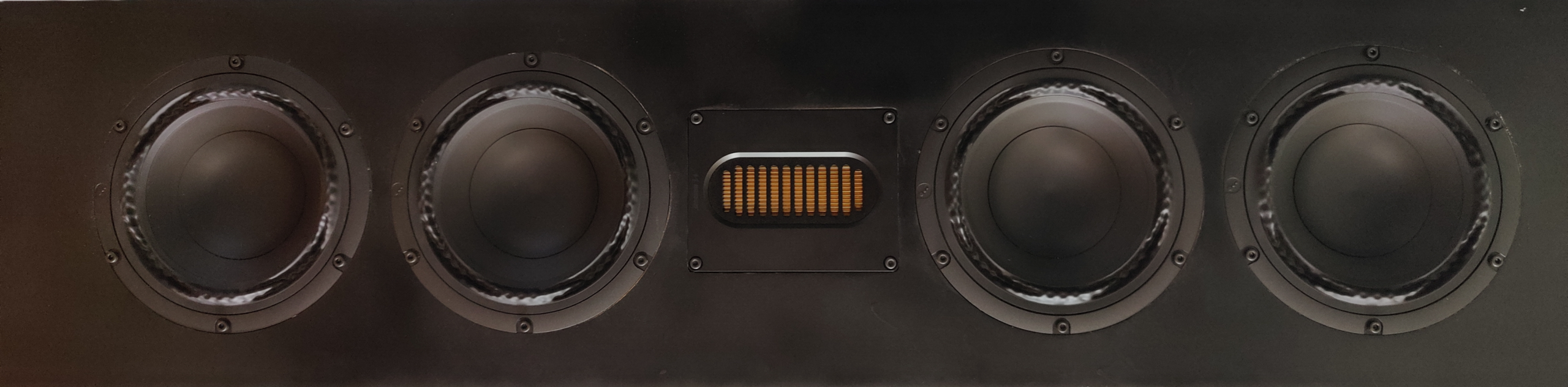

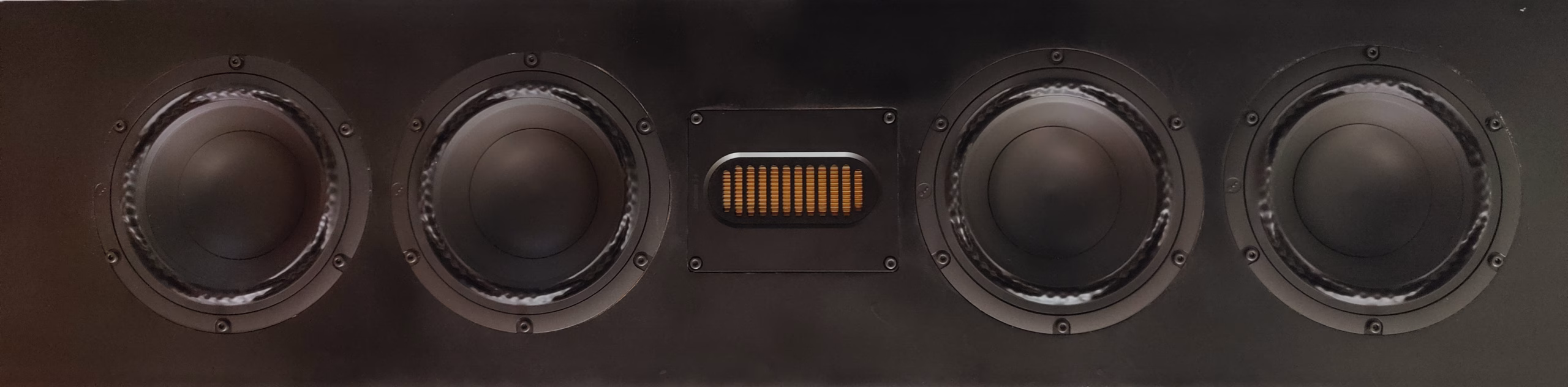

Meanwhile we have added a picture of the our Prototype from the now depricated Active Music Series with 4x 6.5″ transducers (MSA4x6.5) placed horizontally picture wise (All of our speakers are produced in a vertical configuration by default. If a horizontal center speaker is required, the tweeter will be oriented vertically.) – Enjoy!

For demonstrations – please contact us
Demonstration of the Orchestral Solution
Our high-performance Akkurat Audio Luna Station 2.2 system (Orchestral Solution) is available for demonstration upon request. It features a pair of Luna speakers and Station Subwoofers. Positioned in the middle of our Point Source Series, it offers flexibility with stackable subwoofers for extra power. The demonstration is set up in a raw, unfinished space using a high-end streaming device and power amplifiers.
Demonstration of the Cinematic Solution
A complete cinematic solution in an A Sound Experience setting is available for demonstration upon request. The system showcases the aesthetics and living-space integration we provide. Although the living room predates our Akkurat Audio speakers, the interior design represents our design concept. The speakers are processed by the Trinnov Altitude 16 and paired with high-performance power amplifiers in a 7.6.4 Atmos setup.
